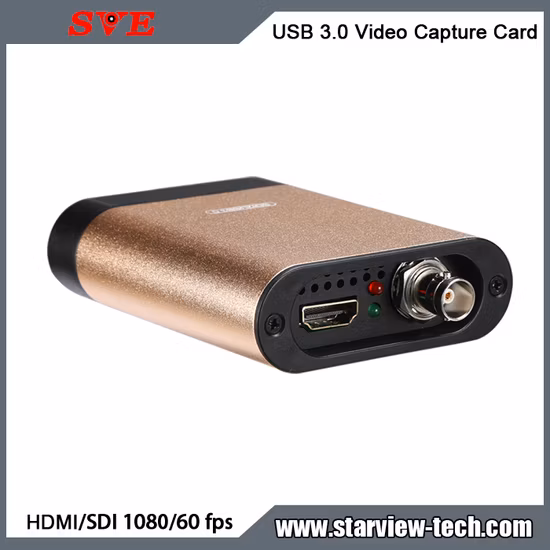

USB3.0 HDMI/SDI Video Capture Card HD Video Grabber

USB3.0 HDMI/SDI Video Capture Card HD Video Grabber

Product Feature Captures HDMI or 3G-SDI/HD-SDI video stream resolutions up to 1920×1080/ 60 FPS UVC compatible, YUV422 v

Send your inquiry

DESCRIPTION

Basic Info
Model NO. USB3.0 Video Capture
USB Interface USB3.0 360MB/S Bandwidth
Input Interface 1 BNC 1 HDMI
Video Input 1 HD/3G-SDI Video Signal 1 1080P60 HDMI HD Video S
Audio Input SDI/HDMI Embedded
SDI Input Format SD/HD/3G-SDI Smpte-259/274/296/372/424/425/292 COM
HDMI Input HDMI 1.4A Compliance Support 1080P/60Hz 8-Bit,(RGB
Transmission HDMI:165MHz SDI:1.485GB/S 2.97GB/S
Working 0-50 Degree
Storage -20-70 Degree 5%-90%
Transport Package Carton Packing
Specification CE/FCC
Trademark OEM
Origin Shenzhen China
HS Code 8529904900
Production Capacity 50, 00PCS/Year
Product Description
Product Feature
  1. Captures HDMI or 3G-SDI/HD-SDI video stream
  2. resolutions up to 1920×1080/ 60 FPS
  3. UVC compatible, YUV422 video output
  4. UAC compatible, simultaneous captured with video.
  5. Real PnP, No driver needed
  6. Support Windows XP, 7, 8.1, 10; Mac OS, Linux
  7. USB power supply, No external power required.
  8. Size:70mm x 100mm x 24mm

Spec. Feature
  1. USB3.0,360MB/s transmit band width.
  2. Video processed by capture card, no need occupy CPU
  3. Auto detect input video format:1920x1080, 1920x960, 1680x1050, 1280x720, 1024x768, 960x540, 850x480,720x576, 720x540, 720x480, 720x404, 704x576, 640x480, 640x360
  4. Brightness, contrast, Saturation, color Hue adjustment.
  5. Support multi-device in one PC.
  6. Firmware can be updated through USB port.
connection
USB interfaceUSB3.0,360MB/s Bandwidth
Input interface1 BNC,1 HDMI
Video input1 HD/3G-SDI video signal,1 1080P60 HDMI HD video signal
Audio inputSDI/HDMI embedded
Standard
SDI input formatSD/HD/3G-SDI,SMPTE-259/274/296/372/424/425/292 compliance
HDMI input formatHDMI 1.4a compliance,Support 1080P/60HZ 8-bit,(RGB,YUV)
Transmission peedHDMI:165MHZ,SDI:1.485Gb/s,2.97Gb/s
Video captureUVC (USB video class) compliance
Audio captureUAC (USB audio class) compliance
Output color spaceYUY2
Others
OSWindows XP, 7, 8.1, 10(32bit & 64bit),Mac OS, Linux
Compatible softwareWindows Media Encoder, ,Adobe Flash Media Live Encoder, Real Producer Plus, VLC, Wire cast, AMCAP etc.…
Compatible development interfaceDirectShow (Windows), DirectSound (Windows)
UpdateFirmware can be updated by USB port
Dimension70x100x24mm
Consumption<= 3.5 W
Working Temperature0-50 °
Storage temperature-20-70 °
Storage humidity5%-90%
Standard accessories
USB 3.0 cable 1pc

Notice:
  1. The USB3.0 transmitting bandwidth is relative with PC performance, the real bandwidth may be lower than the figure indicated in above table
